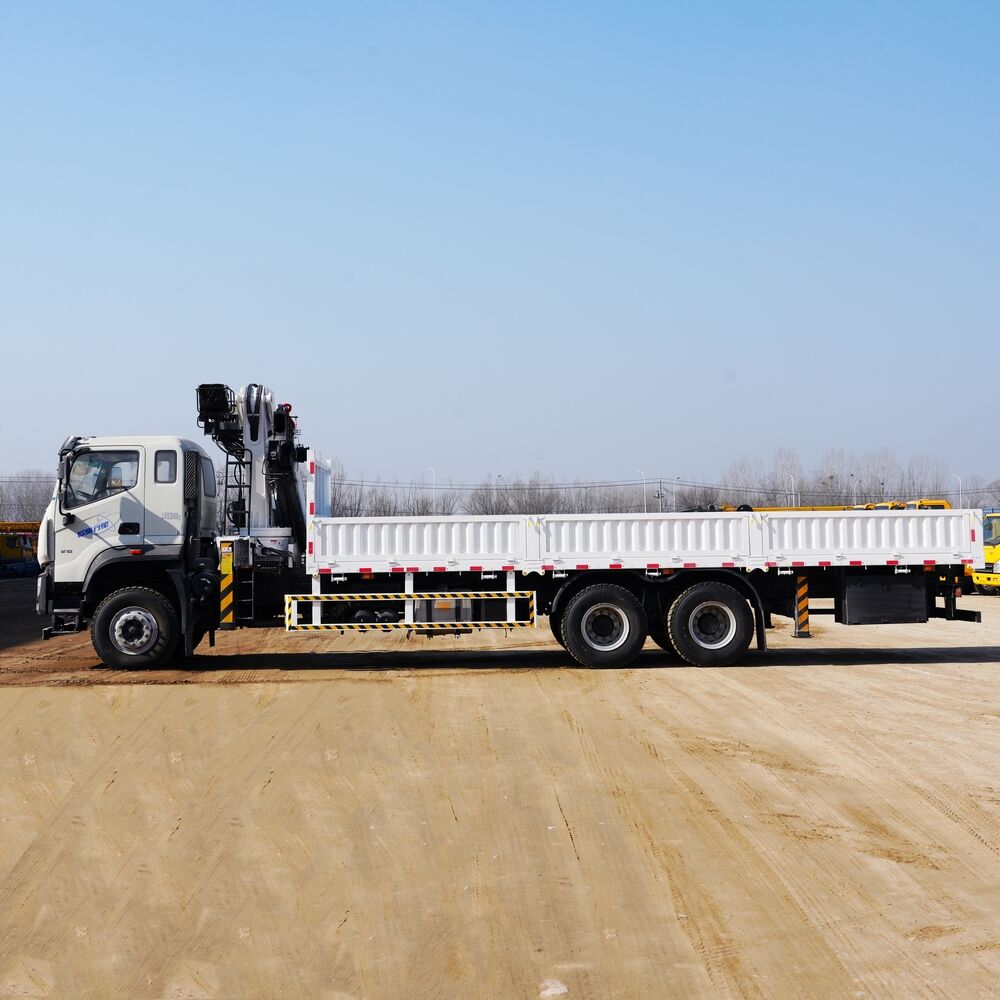

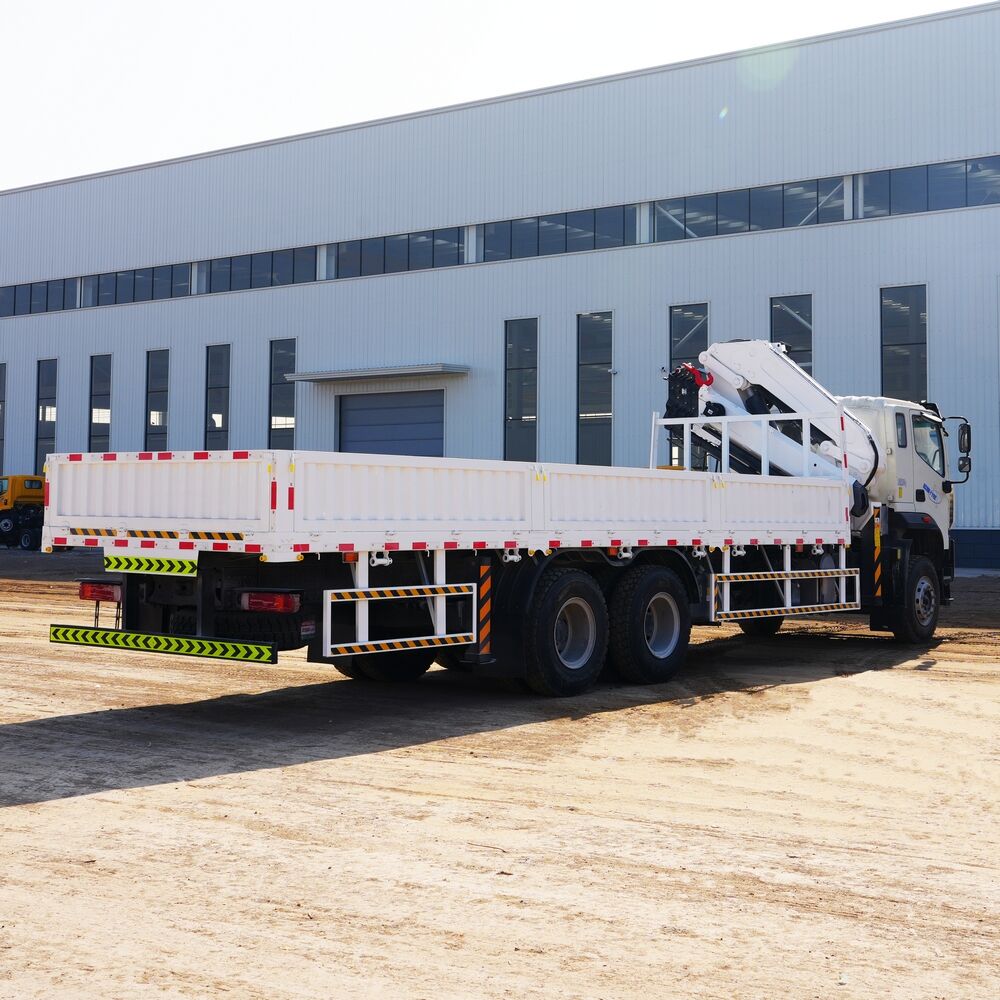

10Ton FOTON-ouman Knuckle Boom Crane

1、ODM，OEM，Color Customization

2、This Product Certificate: CE / ISO / EPA / SGS / ECM

3、ISUZU，HOWO，FOTON，DONGFENG，FAW Chassis

4、Fill In The Information, Be Our Agent!

Introduction

Glad you're on JQCM's official website. I'm the owner of a Chinese factory with self-developed JQCM brand products and patents. I can offer PI, catalog, and quotes, always ready for one-on-one chat.

Our new FOTON-ouman 10-ton knuckle boom crane is outstanding and reliable, ideal for global transport and construction firms. Its 15-meter telescopic crane lifts loads fast and efficiently, helping you finish projects easily and quickly. The user-friendly control system has an intuitive interface, making it easy for even novices to operate. With high-speed safety features, you can rest assured. Plus, there are optional extras like hook blocks, jib extensions, and winches to meet specific needs.

For a dependable, high-quality crane to get the job done swiftly, choose our JQCM truck-mounted crane. It's perfect for construction, transport, and more heavy-lifting tasks due to its great lifting power, sturdy build, and easy-to-use screen. Don't wait, order today!

Vehicle series: FOTON ouman

Auman Planetary 6x4 Truck-Mounted Crane Chassis

Announcement Model: BJ5251JSQY6DPS-01

Cabin: MA5 extended cab with flat roof

Suspension Type: Full-floating four-coil springs

Engine: YCS06270-60

Transmission: 9JS119T-B iron

Wheelbase: 4800+1350mm

Frame: 305x80x(8+6+6)mm straight-through three-layer frame with leaf springs

Leaf Springs: 10/10

Front Axle: 7.5T

Rear Axle: 10T (435) gear ratio 4.111

Tires: 11.00R20 18PR

Fuel Tank: 260L Aluminum Alloy

Other Features: Airbag Seat + Power Windows + Manual Side Mirrors, MP3 Player, Central Locking, Standard Steering Wheel, Mechanical Instrument Cluster, Manual Tilt-Roll (PTO) Switch, EBP Multi-Mode Switch, Power Take-Off, Manual Air Conditioning, Cruise Control

Optional Features: Blind Spot Detection (BSD), Daytime Running Lights, Middle Seat, LED Headlights, Parking Sensors, ETC, Multi-function Steering Wheel, Power and Heated Exterior Mirrors, 360° Panoramic View, LCD Instrument Cluster, 7-inch MP5 Player + Rearview Camera + Bluetooth + Navigation

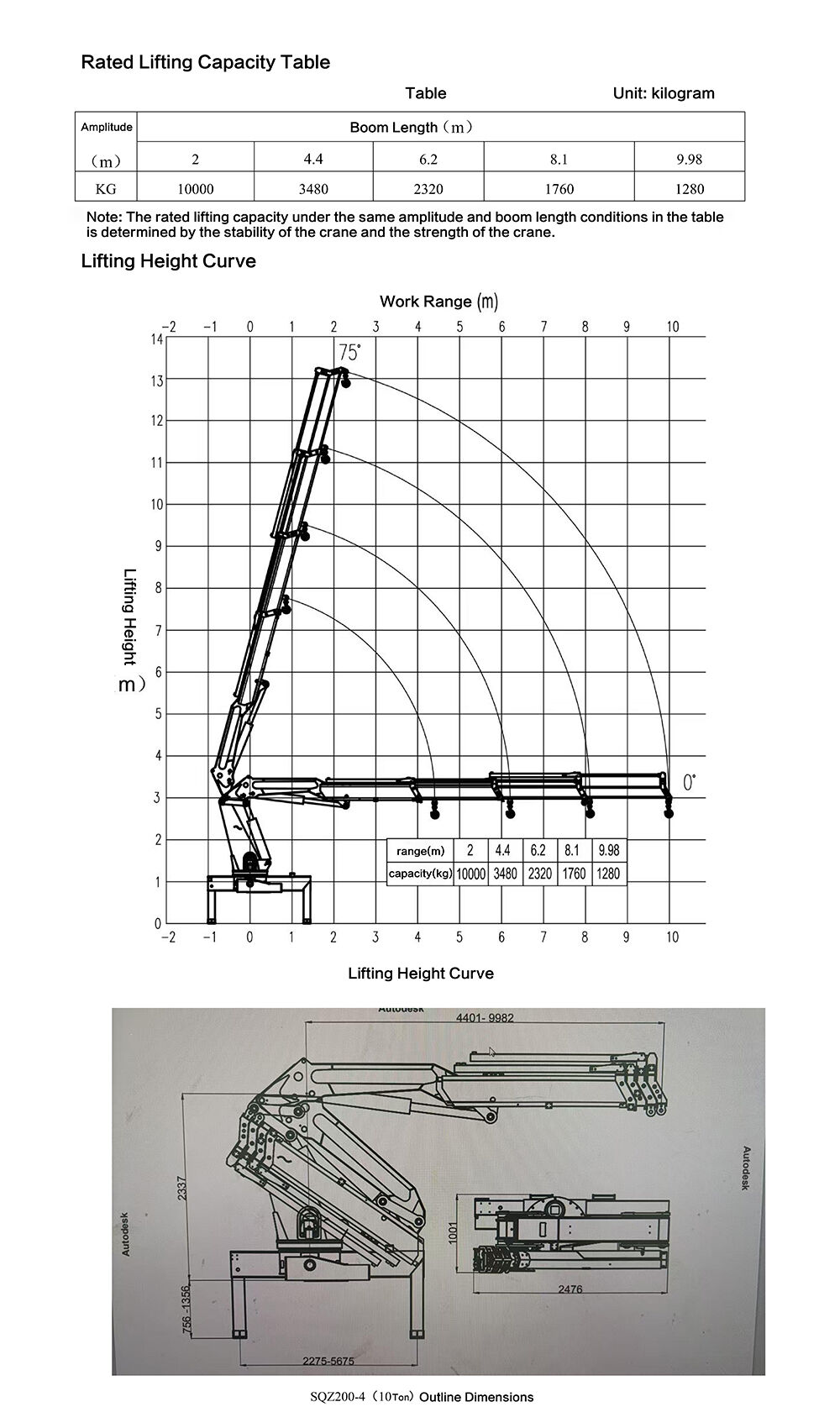

Crane Upper Part：

Max. lifting moment：200kN·m

Max. lifting capacity：10000kg

Max. outreach：9.98m

Max. lifting height：13.5m

Rated Flow of Hydraulic System：45L/min

Oil tank capacity：90L

Rated Pressure of Hydraulic System：28MPa

Recommemd Power：20kw

Installation space：1000mm

Slewing angle：360°full rotation

Crane Weight：3200kg
