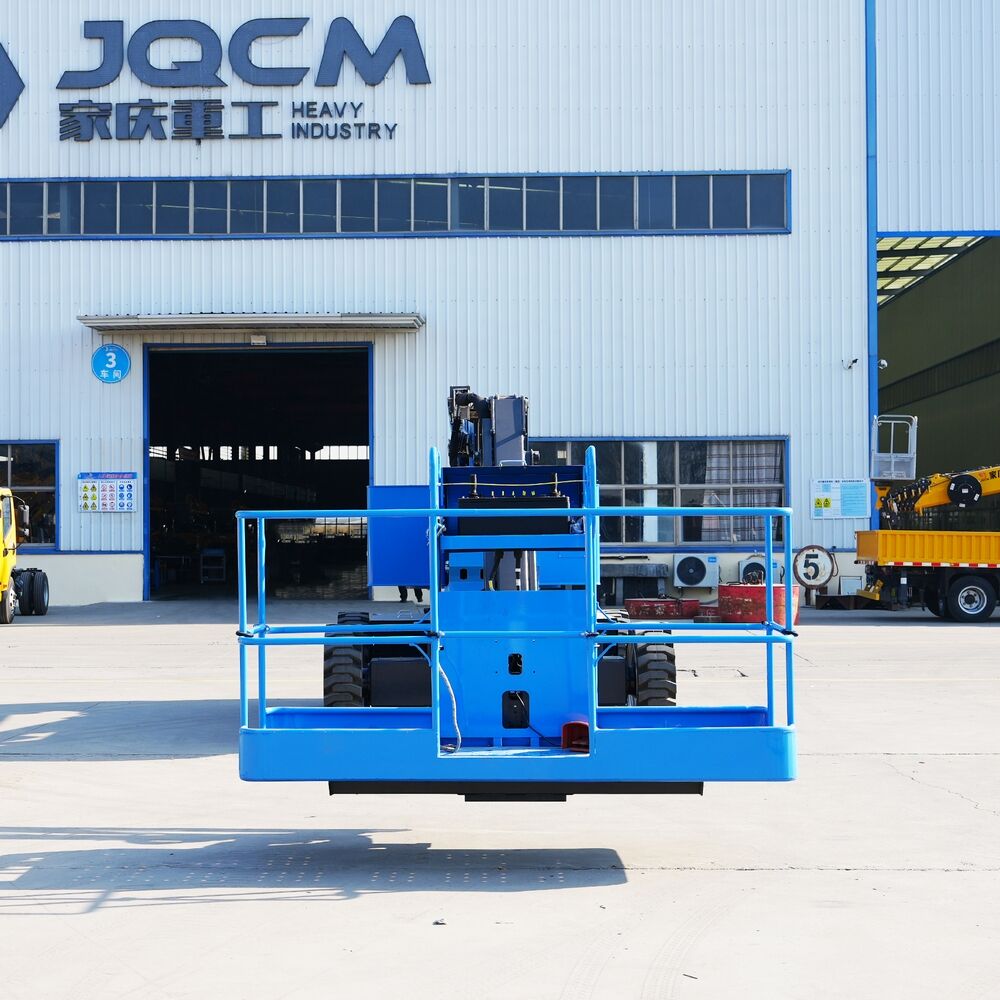

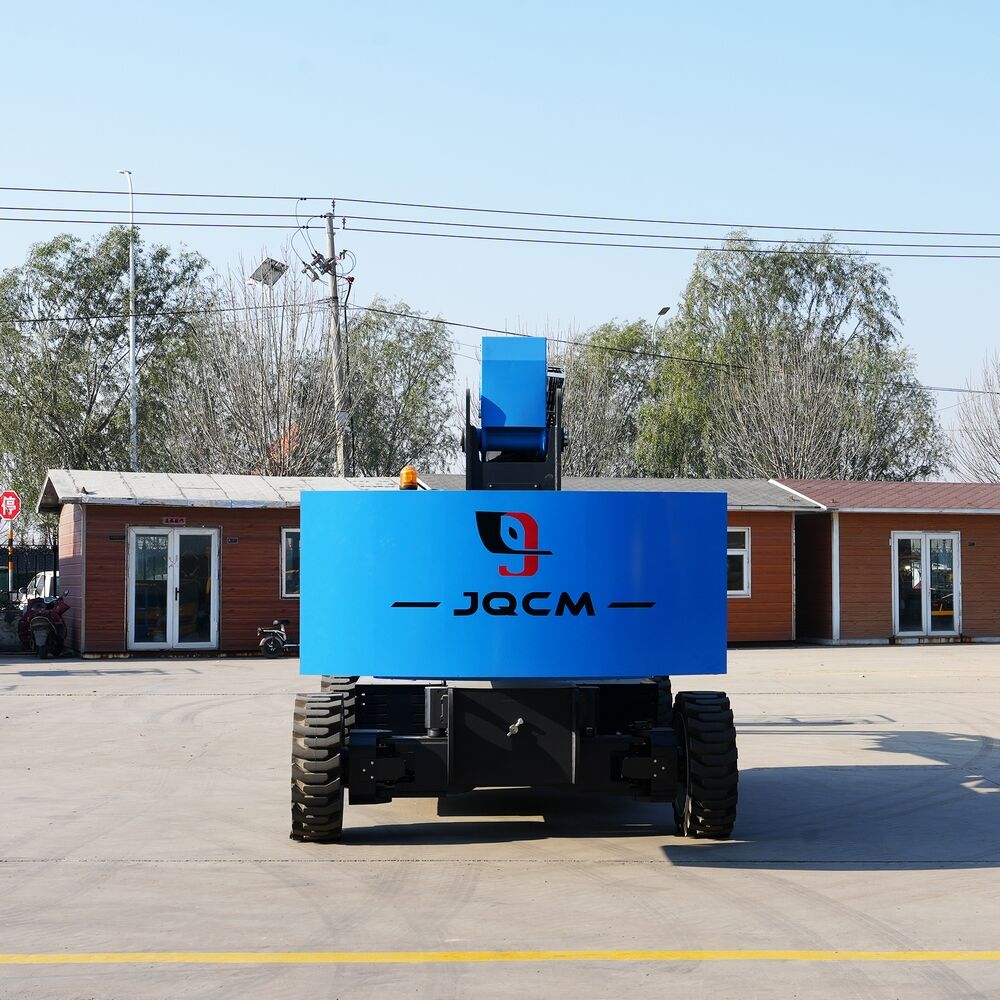

23M Electric Boom Lift

1、ODM，OEM，Color Customization
2、This Product Certificate: CE / ISO / EPA / SGS / ECM
3、Weichai High-performance Battery
4、Fill In The Information, Be Our Agent!

Introduction

Glad you're on JQCM's official website. I'm the Chinese factory owner. Our products are self-developed JQCM brand with patents. I can offer PI, catalog, and quotes, ready for one-on-one chat.

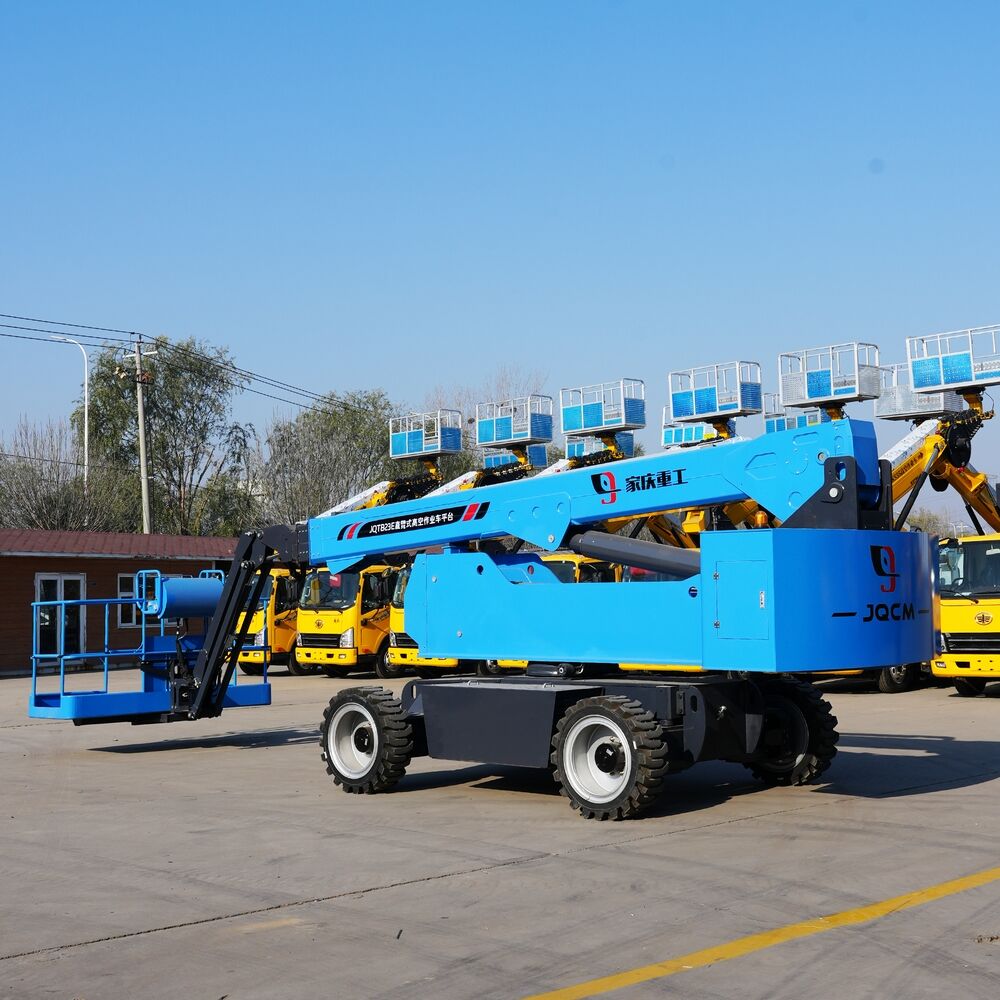

JQCM New Product 23M Electric Boom Lift has a full-retractable arm, large leg span, and great stability. It can operate simultaneously or separately, safe and flexible, even in tight high-rise areas. Ideal for many industries like municipal, power, and more for installation, maintenance.

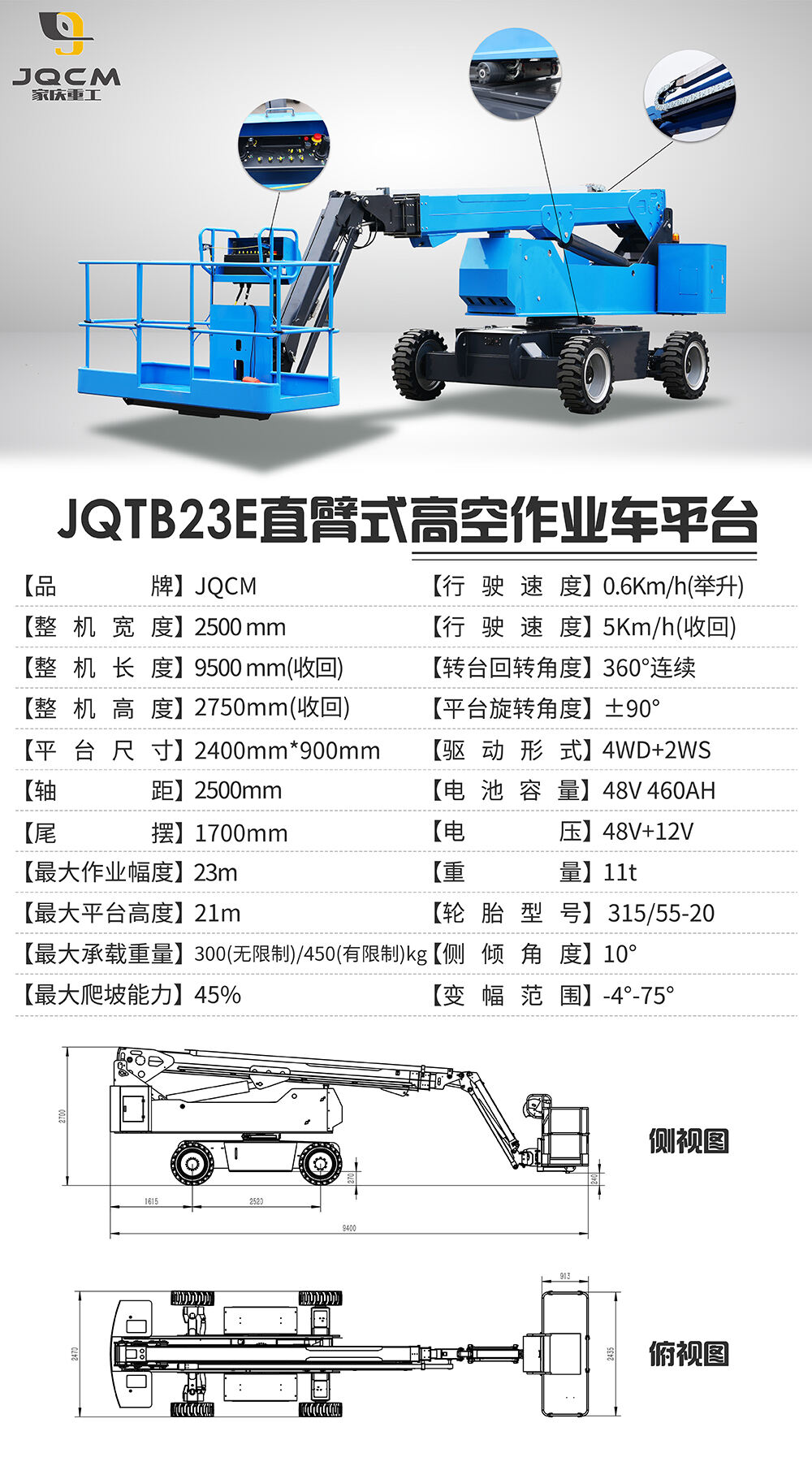

Brand: JQCM
Overall Width: 2500mm
Overall Length: 9500mm (Retracted)
Overall Height: 2750mm (Retracted)
Platform Dimensions: 2400mm*900mm
Wheelbase: 2500mm
Tail Swing: 1700mm
Maximum Working Radius: 23m
Maximum Platform Height: 21m
Maximum Load Capacity: 300kg (Unlimited)/450kg (Limited)
Maximum Climbing Ability: 45%
Travel Speed: 0.6km/h (Lifting)
Travel Speed: 5km/h (Retracted)
Turntable Rotation Angle: 360° Continuous
Platform Rotation Angle: ±90°
Drive Type: 4WD+2WS
Battery Capacity: 48V460AH
Voltage: 48V+12V
Weight: 1lt
Tire Size: 315/55-20
Tilting Angle: 10°
Amplitude Range: -4°-75°
